Chapter 3: Object Relationships

Models from Chapter 3 of Object Modeling & Flow Diagramming for Designers:

• Figure 3.1. UML class diagram for an ATM

• Figure 3.2. Narrative object model for an ATM

• Figure 3.4. Object relationships for Twitter

• Figure 3.5. Object relationships for an e-commerce system

• Figure 3.18. Object relationships for Slack

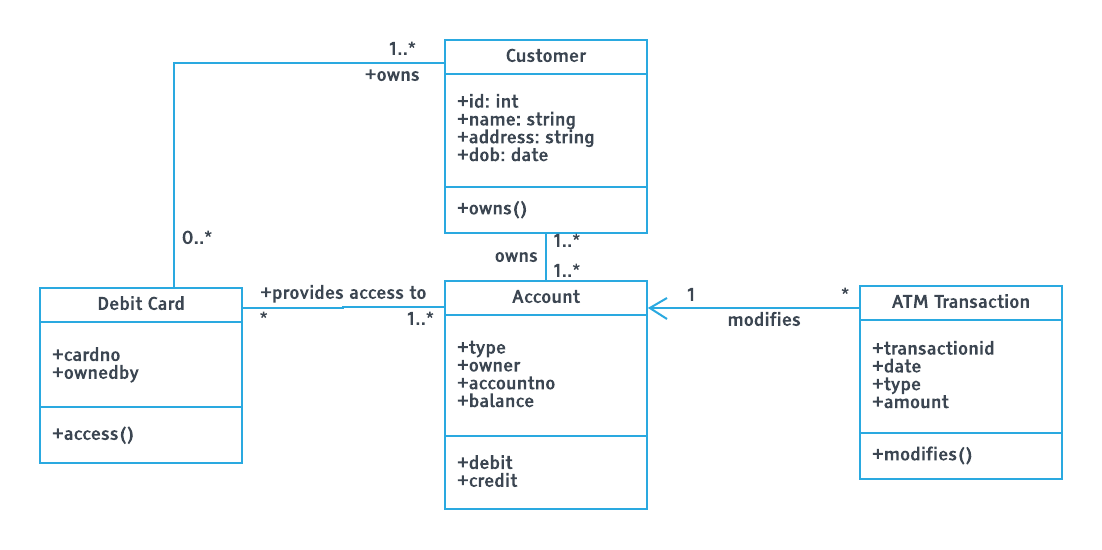

Figure 3.1. UML class diagram for an ATM

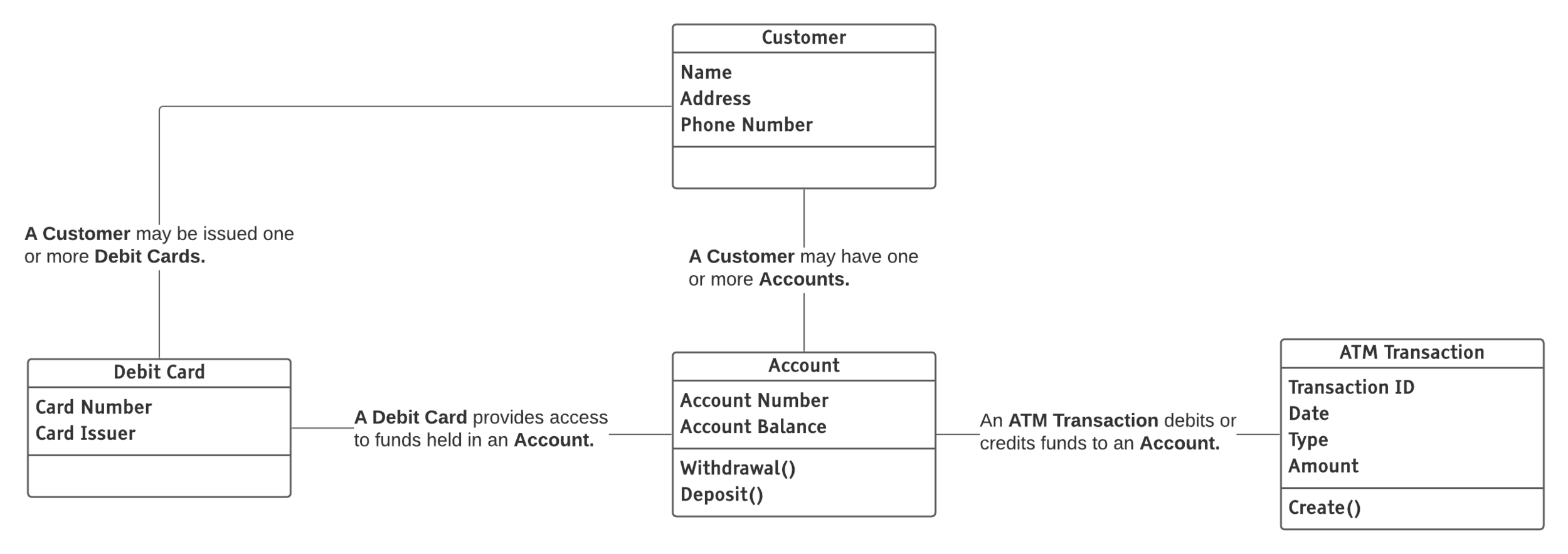

Figure 3.2. Narrative object model for an ATM
